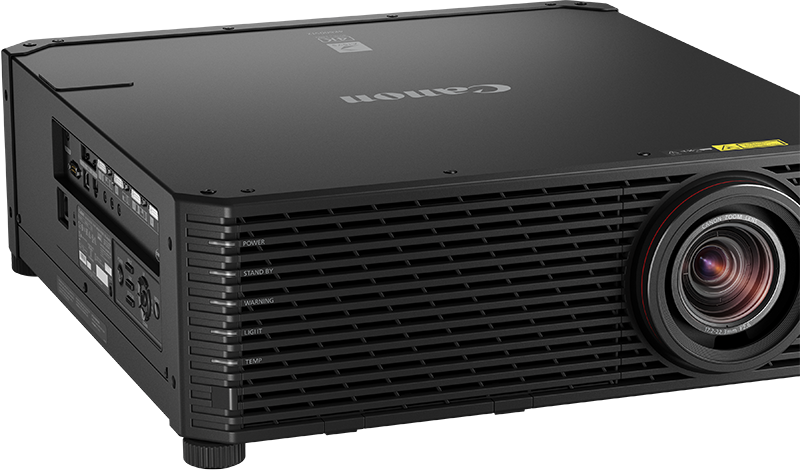

Canon XEED 4K600STZ
Specifications
Dimensions (WxHxD)
559mm x 201mm x 624mm
Weight
26kg
Key Features
4K Resolution
Higher than 4K resolution at 4096 x 2400
AISYS
Powerful brightness and a high native contrast ratio
HDMI
HDMI port
Specifications in detail
Panel
Type
4K-LCOS reflective display, Active Matrix
Size and Number
0.76” diagonal, 3 panels
Aspect Ratio
approx.17:10 (128:75)
Native Resolution
4096 x 2400 (4K), 9830400 pixels
Light Source
Type
Blue Laser Diode and Yellow Phosphor
Light source life
20,000 hr / 40,000 hr (ultra-long life mode)
OPTICS
Lens F Number and Focal Length
F2.6; f=17.2 – 22.3mm
Zoom Magnification and Control
1.3x motorised
Focus control
Motorised
Lens Shift
Vertical: +/-60%, motorised (ratio -1:11 ~ 11:-1)
Horizontal: +/-10%, motorised (ratio 4:6 ~ 6:4)
IMAGE AND AUDIO
Brightness
6,000 / 4,560 / 2,400 lumens (Normal, Quiet-1 and Quiet-2)
In circumstances where the ambient temperature is high, the lumen output may drop to protect the device from any damage.
Colour Brightness
6,000 / 4,560 / 2,400 lumens (Normal, Quiet-1 and Quiet-2)
In circumstances where the ambient temperature is high, the lumen output may drop to protect the device from any damage.
Brightness Uniformity
80%
Contrast Ratio
4,000:1 Iris set to Close3 (All white : all black, Native),
10,000:1 (Dynamic)
Projection Distance Coverage
0.9m – 17.7m (2.2m - 2.9m for 100" image)
Screen size
40” - 600” (88 x 51cm - 1315 x 770cm)
Throw Ratio (70" image)
1.0 - 1.3:1
Digital Zoom Magnification
N/a
Keystone Correction Range
Vertical: +/-20°
Horizontal: +/-20°
DVI (Single) Compatibility
640x480, 800x600, 1280x720, 1024x768, 1366x768, 1440x900, 1280x1024, 1920x1080, 2048x1080, 2560x1080, 1920x1200, 2048x1200, 2560x1440, 3840x2160 (24-30Hz), 4096x2160 (24-30Hz EDID not supported)
DVI 1x2
2560x1080, 2560x1440, 2560x1600, 3840x2160 (24-30Hz), 4096x2160 (24-30Hz)
DVI 2x2
3840x2160, 4096x2160, 4096x2304*, 3200x2400*, 3840x2400*, 4096x2400*
*when 'Panel drive mode' is set to 4096x2400
DVI 1x4
3840x2160, 4096x2160, 4096x2304*, 3840x2400*, 4096x2400*
*when 'Panel drive mode' is set to 4096x2400
HDMI2.0 (single)
640x480, 720x480, 720x576, 800x600, 1280x720, 1024x768, 1366x768, 1440x900, 1280x1024, 1920x1080, 2048x1080, 2560x1080, 1920x1200, 2048x1200, 2560x1440, 2560x1600, 3840x2160, 4096x2160
HDMI 1x2
Built-in Speaker
5.0W RMS, Monaural

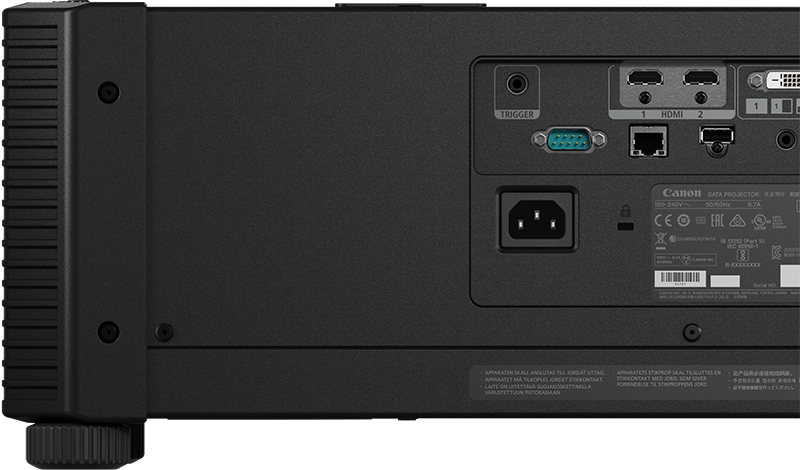

PORTS AND CONNECTORS
Digital RGB Input
DVI-D 25-pin x 4
Digital Video and Audio Input
HDMI* x 2
*4K60P, HDR, BT2020, DeepColour
Audio Input
3.5mm stereo mini-jack
Audio Output
3.5mm stereo mini-jack
Universal Send Feature Sets
USB Type A
Service Port / Projector Control
Mini D-Sub 9-pin, RS232C
Network Port
RJ-45 (1000BASE-T / 100BASE-TX / 10BASE-T)
Wi-Fi transmission standard
IEEE 802.11b / g / n
**A version without Wi-Fi is available – XEED 4K601STZ
Wi-Fi transmission distance
Up to 25m (no electric wave interference / clear view to access point)
Wi-Fi encryption
Open / WEP / WPA-PSK TKIP / WPA-PSK AES / WPA2-PSK TKIP / WPA2-PSK AES
Wi-FI Connection Modes
Infrastructure mode
PjAP (Projector Accss Point) mode
Wi-Fi certification and WPS
Acquired. Push Button Method (PBC) & PIN code method (PIN)
Wired Remote Control
3.5mm stereo mini-jack
MECHANISMS
Elevation Mechanism
Four rotary feet, extension length 15mm
RATINGS
Power Source
100V - 240V AC, 50/60Hz
Power Consumption
Normal Mode: 665W / Eco Mode: 470W
Power Consumption stand-by
Network ON: 0.8W; Low power/network OFF: 0.4W
Noise Level
37/32/29dB (Normal, Quiet-1 and Quiet-2)
Operating Environment
0°C to +45°C (RH: 20-85%)
Storage Environment
-20°C to +60°C (RH: 5-90%)
Warranty
2 Years
All data is based on Canon standard testing methods except where indicated
Subject to change without notice.
